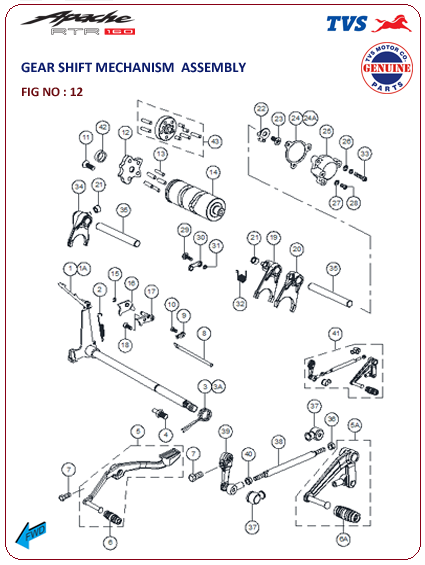

TVS Apache RTR 160 - Gear Shift Mechanism Assembly
1A. Shaft Comp. Gear Shift – M7081790
2. Spring Gear Shift Starter – 3040510
3. Spring Gear Shift Return – 8081530
3A. Spring Gear Shift Return – M7081840
4. Stopper Gear Shift Arm – 8081410
5. Lever Assembly Gear Shift – M7081640
6A. Rubber Gear Shift Lever – M7081740
7. Hex Screw – M6X20 – 420462700
8. Guide T/M Oil – M7080690
9. Retainer T/M Oil Guide – M1080740
12. Index Star – M7081810
13. Roller Cam Drive (Long) – 3044034
14. Cam Gear Shift – M7081800
15. Circlip 5.0 – 8200320
19. Fork Gear Shift No.2 – M7080590
20. Fork Gear Shift No.1 – M7080580
21. Spacer Roller Gear Shift Fork Pin – N2081570
22. Contact Comp. Gear Shift Switch – N2060100
24. Gasket Gear Shift Switch – N2160150
24A. Gasket Gear Shift Switch – M7081850
25. Body Gear Shift Switch – M7081860
28. CRR Pan Screw M3X4 – 332018
29. Bolt Gear Shift Cam Stopper – M1080830
30. Stopper Complete Gear Shift – M6080090
31. Shim 6X14X1 – M6080090
32. Spring Gear Shift Cam Stopper – M7081290
33. Screw M5X20 – F200098
34. Fork Gear Shift High Speed – M7080470
35. Shaft Shift Fork – M7080520
36. Hex Nut M6 – 420305700
37. Grommet – M7081450
38. Stud Gear Shift – M7081370
39. Link Gear Shift Assembly – M7081370
40. Hex Nut M6 – M7200550
41. Gear Shift Linkage Assembly – M7081650
42. Bearing Bush Cam Gear Shift – M7081870
43. Pin Comp Holder – M7081820
